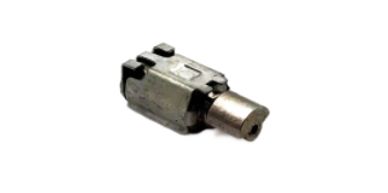

Small SMT Motor Model JYSMTB4411
Small SMT Motor Model JYSMTB4411
- This SMD motor is directly attached to the PCB board. Packaging in tape&reel. Compare to the spring contact motor and welding wire motor, which is more stable. It has now become the mainstream in the mobile phone industry.
- SMD vibration motor features : Highly integrated, it has high temperature resistance characteristic, can be directly soldered by SMT in the FLEX or PCB, combined with the circuit, can avoid the defects caused by the contact deformation of ordinary motors. This small, high quality, low current, yet powerful, quiet, smooth and consistent vibration, easy-to-install. It’s definitely a perfect choice for your NPI project, and for those who need a reliable and high-quality motor for their projects.
- Dimension(mm): 1.7(Ecc.R) *4.4（body width) *10.5( overall length)
- Rated Voltage (Vdc):2.7
- Operating Voltage (Vdc):2.3~3.2
- Rated Current MAX (mA):75
- Starting current: 90mA
- Rated Speed (rpm):14000±2500
- Operating temperature range: -30℃~+70℃
- Terminal resistance: 1phase:33±6
- Vibration Force (Grms):0.42 min
- For small batches you can order from here: JYSMTB4411
Small SMT Motor Model JYSMTB4412
Small SMT Motor Model JYSMTB4411
- This SMD version is reflow solderable and recommended for fully automated processing. Packaging in tape&reel. Directly mounting to PCB.
- SMD vibration motor features : Highly integrated, it has high temperature resistance characteristic, can be directly soldered by SMT in the FLEX or PCB, combined with the circuit, can avoid the defects caused by the contact deformation of ordinary motors. This small, high quality, low current, yet powerful, quiet, smooth and consistent vibration, easy-to-install and it’s the perfect choice for your NPI project.
- Dimension(mm): 1.8(Ecc.R) *4.4（body width) *12( overall length)
- Rated Voltage (Vdc):3.0
- Operating Voltage (Vdc):2.3~3.6
- Rated Current MAX (mA):85
- Starting current: 100mA
- Rated Speed (rpm):12000±2500
- Operating temperature range: -30℃~+70℃
- Terminal resistance: 1phase:33±5
- Vibration Force (Grms):0.6 min
- Responsive Time: 65ms
low power consumption SMT Motor Model JYSMTG4511
low power consumption SMT Motor Model JYSMTG4511
- SMD motor is directly attached to the PCB board. Compare to the spring contact motor and welding wire motor, which is more stable. It has now become the mainstream in the mobile phone industry.
- SMD vibration motor features : Highly integrated, it has high temperature resistance characteristic, can be directly soldered by SMT in the FLEX or PCB, combined with the circuit, can avoid the defects caused by the contact deformation of ordinary motors. This small, high quality, low current, yet powerful, quiet, smooth and consistent vibration, easy-to-install make it a perfect choice for your NPI project.
- Dimension(mm): 1.4(Ecc.R) *4.1（body width) *11.3( overall length)
- Rated Voltage (Vdc):2.7
- Operating Voltage (Vdc):2.3~3.2
- Rated Current MAX (mA):28
- Starting current: 38mA
- Rated Speed (rpm):11000±2500
- Operating temperature range: -30℃~+70℃
- Terminal resistance: 80±5Ω (2/3 coil resistance)
- Vibration acceleration (Gp): 0.52Gp-p
- Typical Norm. Amplitude: 0.25 G
SMT Motor Model JYSMTB382711
low power consumption SMT Motor Model JYSMTG4511
low power consumption SMT Motor Model JYSMTG4511
- SMD motor is directly attached to the PCB board. Compare to the spring contact motor and welding wire motor, which is more stable. It has now become the mainstream in the mobile phone industry.
- SMD vibration motor features : Highly integrated, it has high temperature resistance characteristic, can be directly soldered by SMT in the FLEX or PCB, combined with the circuit, can avoid the defects caused by the contact deformation of ordinary motors. This small, high quality, low current, yet powerful, quiet, smooth and consistent vibration, easy-to-install make it a perfect choice for your NPI project.
- Dimension(mm): 1.7(Ecc.R) *3.8（body width) *11.0( overall length)
- Rated Voltage (Vdc):2.7
- Operating Voltage (Vdc):1.5~3.3
- Rated Current MAX (mA):100
- Starting current: 110mA max
- Rated Speed (rpm):11000±2500
- Operating temperature range: -30℃~+70℃
- Vibration acceleration (Grms): 0.35
- Typical Norm. Amplitude: 0.49 Gp
SMT Motor Model JYSMTB403012
low power consumption SMT Motor Model JYSMTG4511
low power consumption SMT Motor Model JYSMTG4511
- This SMD version is reflow solderable and recommended for fully automated processing. Packaging in tape&reel. Directly mounting to PCB.
- SMD vibration motor features : Highly integrated, it has high temperature resistance characteristic, can be directly soldered by SMT in the FLEX or PCB, combined with the circuit, can avoid the defects caused by the contact deformation of ordinary motors. This small, high quality, low current, yet powerful, quiet, smooth and consistent vibration, easy-to-install make it a perfect choice for your NPI project.
- Dimension(mm): 1.38(Ecc.R) *4.0（body width) *11.1( overall length)
- Rated Voltage (Vdc):2.7
- Operating Voltage (Vdc):2.3~3.2
- Rated Current MAX (mA):70
- Starting current: 90mA
- Rated Speed (rpm):15000±3000
- Operating temperature range: -30℃~+70℃
- Terminal resistance: 46±6Ω (2/3 coil resistance)
- Vibration acceleration (Gp): 0.41 Gp-p
- Typical Norm. Amplitude: 0.3 Grms
low power consumption SMT Motor Model JYSMTG4511
low power consumption SMT Motor Model JYSMTG4511
low power consumption SMT Motor Model JYSMTG4511
- SMD motor is directly attached to the PCB board. Compare to the spring contact motor and welding wire motor, which is more stable. It has now become the mainstream in the mobile phone industry.
- SMD vibration motor features : Highly integrated, it has high temperature resistance characteristic, can be directly soldered by SMT in the FLEX or PCB, combined with the circuit, can avoid the defects caused by the contact deformation of ordinary motors. This small, high quality, low current, yet powerful, quiet, smooth and consistent vibration, easy-to-install make it a perfect choice for your NPI project.
- Dimension(mm): 1.4(Ecc.R) *4.1（body width) *11.3( overall length)
- Rated Voltage (Vdc):2.7
- Operating Voltage (Vdc):2.3~3.2
- Rated Current MAX (mA):28
- Starting current: 38mA
- Rated Speed (rpm):11000±2500
- Operating temperature range: -30℃~+70℃
- Terminal resistance: 80±5Ω (2/3 coil resistance)
- Vibration acceleration (Gp): 0.52Gp-p
- Typical Norm. Amplitude: 0.25 G
