Brush type, coin vibration motor erm vibration motor micro motor JYC0625

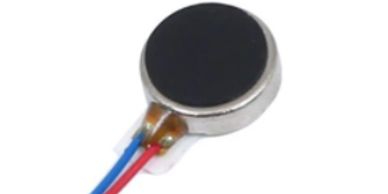

• This is the world's smallest brushed type coin vibration motor with 6mm Dia,  2.5mm thickness.
• It is used on light weight wearable devices such as fitness trackers and smart watches, smart rings. This is wire leads. Contact us if your application required FPC.

Technical Requirements

• Product Dimensions:  Φ6×2.5 mm
• Rated Voltage (Vdc):3.0
• Operating Voltage (Vdc):2.0~3.5
• Rated Current MAX (mA):100
• Typical Current (mA):42
• Rise Time (ms) MAX *:90
• Fall Time (ms) MAX *:50
• Rated Speed (rpm, MIN):10000
• Vibration Force (Grms):0.20
• Operating temp:-20～+70℃

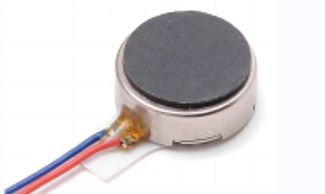

• This is also the smallest tiny brushed type coin vibration motor with super small dimensions of 7mm Dia, but 2.0mm thickness. High quality, quiet and compact size, its durability,  efficiency and long lifespan make it lead the market and widely used on wearable devices (fitness trackers and smart watches, smart rings) due to its strong features.
• This is terminated with wire leads. FPC type JYC0720FDRL is also available.
• For small volume you can order from here:  JYC0720

Technical Requirements

• Product Dimensions:  Φ7×2.0  mm
• Rated Voltage (Vdc):3.0
• Operating Voltage (Vdc):2.5~3.3
• Rated Current MAX (mA):80
• Rated Speed (rpm, MIN):10000
• Vibration Force (Grms):0.30
• Operating temp:-20～+60℃
• Life Cycle: 3V ,2S on, 1S off, 50000 cycles

Technical Requirements

• Product Dimensions:  Φ8×2.1  mm
• Rated Voltage (Vdc):3.0
• Operating Voltage (Vdc):2.5~3.3
• Rated Current MAX (mA):100
• Rated Speed (rpm, MIN):10000
• Vibration Force (Grms):0.30
• Insulation Resistance: 10MΩ Min
• Operating temp:-20～+60℃
• High quality, quiet and compact size, its durability,  efficiency and long lifespan makes it ideal for wearable devices(fitness trackers and smart watches, smart rings).  This is wire leads, FPC version is also available if your application requires it.
• For small volume you can order from here:  JYC0820

Technical Requirements

• Product Dimensions:  Φ8×2.1  mm
• Rated Voltage (Vdc):3.0
• Operating Voltage (Vdc):2.5~3.0
• Rated Current MAX (mA): 35
• Rated Speed (rpm, MIN):  10,000 ± 2,000
• Vibration Force (Grms):0.25
• Operating temp:-20～+60℃
• This low power consumption motor is a great advantage to ensure a longer battery life for your devices. If your application require FPC(flexible printed circuit) please contact us.

Technical Requirements

• Product Dimensions:  Φ8×2.7  mm
• Rated Voltage (Vdc):3.0
• Operating Voltage (Vdc):2.5~3.3
• Rated Current MAX (mA): 100
• Rated Speed (rpm, MIN):10000
• Vibration Force (Grms):0.7
• Operating temp:-20～+60℃
• For small volume you can order from here: JYC0827 . Or apply a 2P Molex connector Molex 51021-0200 type: JYC0827MC020-L35.

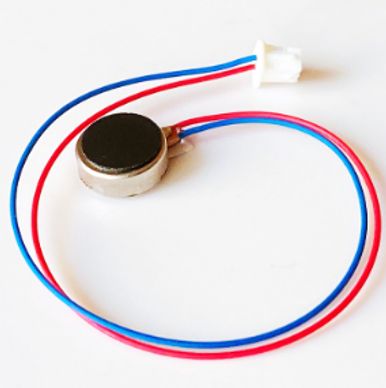

• This motor is connectorized with a HOT 2P connector  Molex 51021-0200.  Short lead time, high quality, original quality assured, good price. Various connectors can be added to our leaded motors.

Technical Requirements

• Product Dimensions:  Φ8×3.0  mm
• Rated Voltage (Vdc):3.0
• Operating Voltage (Vdc):2.7~3.3
• Rated Current MAX (mA): 900
• Rated Speed (rpm, MIN):14000
• Vibration Force (Grms):0.75
• Operating temp:-20～+60℃

Technical Requirements

• Product Dimensions:  Φ8×3.4  mm
• Rated Voltage (Vdc):3.0
• Operating Voltage (Vdc):2.5~3.5
• Rated Current MAX (mA): 100
• Rated Speed (rpm, MIN):10000
• Vibration Force (Grms):0.8
• Operating temp:-20～+60℃

Technical Requirements

• Product Dimensions:  Φ10×1.85  mm
• Rated Voltage (Vdc):3.0
• Operating Voltage (Vdc):2.5~3.5
• Rated Current MAX (mA): 85
• Rated Speed (rpm, MIN):10000
• Vibration Force (Grms):0.4
• Operating temp:-20～+60℃

Technical Requirements

• Product Dimensions:  Φ10×2.0  mm
• Rated Voltage (Vdc):3.0
• Operating Voltage (Vdc):2.5~3.5
• Rated Current MAX (mA): 80
• Rated Speed (rpm, MIN):13000
• Vibration Force (Grms): 0.6 min
• Operating temp:-20～+60℃
• For small volume you can order from here:  JYC1020

Technical Requirements

• Product Dimensions:  Φ10×2.7  mm
• Rated Voltage (Vdc):3.0
• Operating Voltage (Vdc):2.5~3.5
• Rated Current MAX (mA): 100
• Rated Speed (rpm, MIN):13000
• Vibration Force (Grms):1.0
• Operating temp:-20～+60℃
• For small volume you can order from here:

JYC1027 , Or apply a 2P Molex connector

            Molex 0781720002 type: JYC1027MC7202-L35.

Technical Requirements

• Product Dimensions:  Φ10×3.0  mm
• Rated Voltage (Vdc):3.0
• Operating Voltage (Vdc):2.5~3.3
• Rated Current MAX (mA): 100
• Rated Speed (rpm, MIN):13500
• Vibration Force (Grms):1.0
• Operating temp:-20～+60℃
• For small volume you can order from here:  JYC1030

Technical Requirements

• Product Dimensions:  Φ10×3.4  mm
• Rated Voltage (Vdc):3.0
• Operating Voltage (Vdc):2.5~3.5
• Rated Current MAX (mA): 100
• Rated Speed (rpm, MIN):13500
• Vibration Force (Grms):1.0
• Operating temp:-20～+60℃
• For small volume you can order from here:  JYC1034

Technical Requirements

• Product Dimensions:  Φ10×2.7  mm
• Rated Voltage (Vdc):3.0
• Operating Voltage (Vdc):2.5~3.5
• Rated Current MAX (mA): 100
• Rated Speed (rpm, MIN):13000
• Vibration Force (Grms):1.0
• Operating temp:-20～+60℃
• This motor is connectorized with a popular JST connector SHR-02V-S-B 2-Pin 1.0mm contact Pitch wire to board connector( The world's first 1.0 mm pitch crimp style connector, ultra-compact, high quality, low profile design). Various of connectors can be added to our any types of leaded motors. Short lead time, original high quality assured and cost effective.

Technical Requirements

• Product Dimensions:  Φ12×3.4  mm
• Rated Voltage (Vdc):3.0
• Operating Voltage (Vdc):2.5~5.0
• Rated Current MAX (mA): 100
• Rated Speed (rpm, MIN):12000
• Vibration Force (Grms):2.0
• Operating temp:-20～+60℃
• For small volume you can order from here:  JYC1234

Technical Requirements

• Product Dimensions:  Φ7×2.0  mm
• Rated Voltage (Vdc):3.0
• Operating Voltage (Vdc):2.5~3.3
• Rated Current MAX (mA):90
• Rated Speed (rpm, MIN):10000
• Vibration Force (Grms):0.30
• Insulation Resistance: 10MΩ Min
• Operating temp:-20～+60℃
• This motor delivers powerful and consistent vibrations. High quality, quiet and compact size, its durability,  efficiency and long lifespan ensure reliable performance. This motor is designed for easy connection to the PCB. Its double-sided welding pad FPC can be welded directly to a PCB by hot bar reflow soldering machine. It has been used in batches by mainstream products on the market and can stand the verification.
• For small volume you can order from here:   JYC720FDRL

Technical Requirements

• Product Dimensions:  Φ14×3.4  mm
• Rated Voltage (Vdc):3.0
• Operating Voltage (Vdc):3.0~3.7
• Rated Current MAX (mA): 90
• Rated Speed (rpm, MIN):11000
• Vibration Force (Grms):4.5 min
• Operating temp:-20～+60℃
• Original development for this configuration with low current, low voltage input but highest vibration G force output makes it the most powerful brushed type flat motor!
• For small volume you can order from here:  JYC1434

Technical Requirements

• Product Dimensions:  Φ14×3.4  mm
• Rated Voltage (Vdc):3.0
• Operating Voltage (Vdc):3.0~3.7
• Rated Current MAX (mA): 90
• Rated Speed (rpm, MIN):11000
• Vibration Force (Grms):4.5 min
• Operating temp:-20～+60℃
• Original development for this configuration with low current, low voltage input but highest vibration G force output makes it the most powerful brushed type flat motor!

Technical Requirements

• Product Dimensions:  Φ10×2.7  mm
• Rated Voltage (Vdc):3.0
• Operating Voltage (Vdc):2.7~3.3
• Rated Current MAX (mA): 90
• Rated Speed (rpm, MIN):13000
• Vibration Force (Grms):1.0
• Operating temp:-20～+60℃

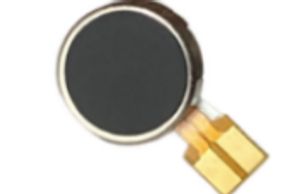

• This coin vibration motor has a FPC with  contact pads which can be connected with spring contacts on the PCBA.

Technical Requirements

• Product Dimensions:  Φ8×2.0  mm
• Rated Voltage (Vdc):3.0
• Operating Voltage (Vdc):2.5~3.0
• Rated Current MAX (mA): 35
• Rated Speed (rpm, MIN):  12000±2000 Min
• Vibration Force (Grms):0.60
• Operating temp:-20～+60℃
• This FPC(flexible printed circuit) type was specifically designed for wearable devices with FPC for easy connecting to the PCB, its double-sided welding pad FPC can be easily solder to the PCB by hot bar soldering machine.  A double adhesive tape to help it to be perfectly adhere to the product housing. High quality, quiet and compact size, its durability,  efficiency and long lifespan make it ideal for wearable devices(fitness trackers and smart watches, smart rings, etc..).Its low power consumption is also a great advantage to ensure a longer battery life for your devices.  It has been used in batches by mainstream products on the market and can stand the verification.
• For small volume you can order from here:  JYC0820FL

Technical Requirements

• Product Dimensions:  Φ8×3.0  mm
• Rated Voltage (Vdc):3.0
• Operating Voltage (Vdc):2.7~3.3
• Rated Current MAX (mA): 90
• Rated Speed (rpm, MIN):16000
• Vibration Force (Grms):0.8
• Operating temp:-20～+60℃
• This coin vibration motor has a FPC with  contact pads which can be connected with spring contacts on the PCBA.

Technical Requirements

• This motor is applied with a popular 2P Molex connector Molex 51021-0200.
• Product Dimensions:  Φ8×2.7  mm
• Rated Voltage (Vdc):3.0
• Operating Voltage (Vdc):2.5~3.3
• Rated Current MAX (mA): 100
• Rated Speed (rpm, MIN):10000
• Vibration Force (Grms):0.7
• Operating temp:-20～+60℃
• For small volume you can order from here: JYC0827MC020-L35.
