Spring contact vibration motor Model JYZ0408

Product features

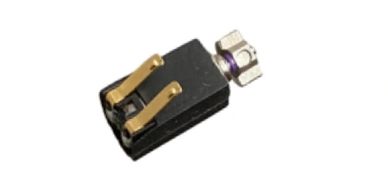

 Φ4mm Vibration Motor with Spring Contacts

• Diameter (mm):4.0
• Body Length (mm):8.1
• Overall Length (mm):11.3
• Rated Voltage (Vdc):3.0
• Operating Voltage (Vdc):2.4-3.5
• Rated Current MAX (mA):100
• Rated Speed (rpm):14000
• Vibration Force (Grms):1.0 min
• Motor speed, eccentric weight and current value are reference only, we are able to customize as per customer's request.

Product features

 Φ4mm Vibration Motor with wire leads

• Diameter:4.0
• Body Length (mm):8.0
• Overall Length (mm):11.3
• Rated Voltage (Vdc):3.0
• Operating Voltage (Vdc):2.7~3.3
• Rated Current MAX (mA): 20
• Rated Speed (rpm):9000±2500rpm
• Vibration Force (Grms): 0.3g min
• Terminal resistance:   120Ω±20%
• Motor speed, eccentric weight and current value are reference only, we are able to customize as per customer's request.

Product features

Φ4mm Vibration Motor with Spring Contacts

• Diameter:4.0
• Body Length (mm):8.0
• Overall Length (mm):11.3
• Rated Voltage (Vdc):3.0
• Operating Voltage (Vdc):2.7~3.3
• Rated Current MAX (mA): 20
• Rated Speed (rpm):9000±2500rpm
• Vibration Force (Grms): 0.3g min
• Terminal resistance:   120Ω±20%
• Motor speed, eccentric weight and current value are reference only, we are able to customize as per customer's request. Wire leads type is also available.

Product features

 Φ4mm Vibration Motor with wire leads

• Diameter:4.0
• Body Length (mm):8.0
• Overall Length (mm):11.3
• Rated Voltage (Vdc):3.0
• Operating Voltage (Vdc):2.7~3.3
• Rated Current MAX (mA): 25
• Rated Speed (rpm):8000±2500rpm
• Vibration Force (Grms): 0.25 min
• Terminal resistance:   96Ω±20%
• Motor speed, eccentric weight and current value are reference only, we are able to customize as per customer's request.
• For small batches please order from here:  JY408-111-883

 Product features

 Φ4mm Vibration Motor with Spring Contacts

• Diameter:4.0
• Body Length (mm):8.0
• Overall Length (mm):11.3
• Rated Voltage (Vdc):3.0
• Operating Voltage (Vdc):2.7~3.3
• Rated Current MAX (mA):25
• Rated Speed (rpm):8000±2500rpm
• Vibration Force (Grms):0.25 min
• Terminal resistance:   96Ω±20%
• Motor speed, eccentric weight and current value are reference only, we are able to customize as per customer's request.
• For small batches please order from here:  JY408-211-292

This motor part is our 6mm standard PCB through-hole vibration motor. This can be customized as per your requests.

Product features

• Body length: 9.8mm\10.3mm
• Motor Diameter (mm): 6.0
• Overall length(mm): 15.5
• RATED VOLTAGE: DC3.7V
• VOLTAGE RANGE: DC 3.0~4.5V
• STARTING CURRENT: 90mA Max
• RATED CURRENT: 160mA Max
• RATED SPEED: 15000rpm
• VIBE FORCE:1.2 Min Gms
• For small batches you can order from  here:  JYZ0610155

Cylinder Type Vibration Motor ERM 14000 RPM 3.0V

• This is the smallest motor we have developed so far, with a diameter of only 3.2mm, ultra mini size, ideal for wearables.  This motor is also can be added a rubber gasket (JYCL3213R1940) to reduce the unwanted mechanical noise when the motor starts.
• Diameter (mm):3.2
• Body Length (mm):8.0
• Overall Length (mm):12.1
• Technical Requirements：
• Rated Voltage：3.0 V
• Rated Current：90 mA （ Max)
• Rated Load Speed：14000±3000rpm
• Starting Voltage: 2.0 V （ Max)
• Terminal Resistance：30±20% Ω
• Rotation Direction: CW/CCW
• Custom lead lengths, bigger eccentric weight (JYCL3212R1740) is also available.
• For small batches you can order from here:  JYCL3212R1728

Cylinder Type Vibration Motor ERM 14000 RPM 3.0V

• Diameter (mm):3.9
• Body Length(mm):8.0
• Overall  Length (mm):13.3
• Technical Requirements：
• Rated Voltage：3.0 V
• Rated Current：90 mA （ Max)
• Rated Load Speed：14000±3000rpm
• Starting Voltage: 2.0 V （ Max)
• Terminal Resistance：30±20% Ω
• Rotation Direction: CW/CCW
• For small batches you can order from here:  JYCL3213R1940
