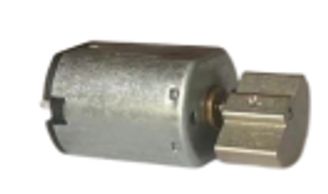

12mm ERM motor JYN30PA-11130V-27

• Diameter/Height (mm):12.0 / 10.0
• Body (mm):20
• Overall (mm):27.7
• Rated Voltage (Vdc):3.0
• Operating Voltage (Vdc):1.5~4.2
• Rated Current MAX (mA):160
• Rated Speed (rpm): 4000rpm±10%
• Eccentric weight can be made with iron, brass, or tungsten alloy.
• Motor speed, eccentric weight and current value are reference only, we are able to customize as per customer's request.  We are driven to deliver excellence quality products to our customers.

• Diameter/Height (mm):12.0 / 10.0
• Body (mm):20.5
• Overall (mm):27.9
• Rated Voltage (Vdc):3.0
• Starting Voltage: 1.8V (max)
• Operating Voltage (Vdc):1.5~4.2
• Rated Current MAX (mA):350
• Rated Speed (rpm): 6400rpm±10%
• Eccentric weight can be made with iron, brass, or tungsten alloy.

• Motor speed, eccentric weight and current value are reference only, we are able to customize as per customer's request.  We are driven to deliver excellence quality products to our customers.

• Diameter/Height (mm):12.0 / 10.0
• Body (mm):20
• Overall (mm):27.7
• Rated Voltage (Vdc):3.0
• Rated Current MAX (mA):180
• Rated Speed (rpm):4000
• Eccentric weight can be made with iron, brass, or tungsten alloy.

• Motor speed, eccentric weight and current value are reference only, we are able to customize as per customer's request.  We are driven to deliver excellence quality products to our customers.

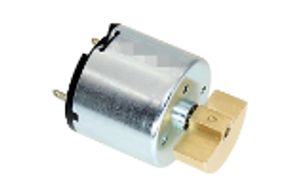

• Diameter (mm): 20.4 mm
• Body (mm): 25 mm
• Rated Voltage (Vdc): 3V DC
• Operating Voltage (Vdc):   DC1.8V~3.7V
• Rated Current MAX (mA):    480mA(max.)
• Rated Speed (rpm):    6100rpm±10%
• Vibration Force (Grms):15.9 g

Eccentric weight can be made with iron, brass, or tungsten alloy.

• RATED VOLTAGE: DC1-24.0V
• VOLTAGE RANGE: DC 2.4~3.6V
• RATED CURRENT: 70mA Max
• RATED SPEED: 8000rpm
• Paremeters can be custom-made

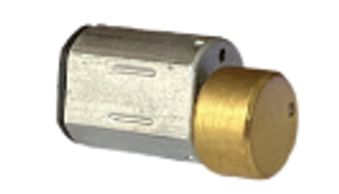

24.4mm Vibration Motor

•  Diameter/Height (mm):24.4
• Body (mm):12.5
• Overall (mm):25.0
• Rated Voltage (Vdc):1.5-6.0

• The motor shaft length and the material and size of the eccentric weight can be customized according to your requirements.
• Eccentric weight can be made with iron, brass, or tungsten alloy.

34mm Vibration Motor

• Diameter (mm): 34.2mm
• Body (mm): 29.6mm
• Rated Voltage (Vdc): 12V DC
• Operating Voltage (Vdc):  DC2.0V~14.0V
• Rated Current MAX (mA):  180mA(max.)
•  Rotation : CCW
• Rated Speed (rpm):  6800rpm±10%
• Vibration Force (Grms):110 g

Eccentric weight can be made with iron, brass, or tungsten alloy.

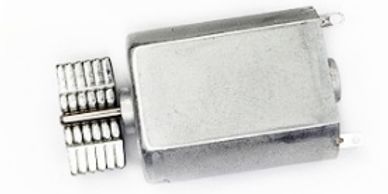

ERM Vibration Motor

• Body dia (mm):12.0 / 10.0
• Body length (mm):15.1
• Overall (mm):23.7
• Ecc. Weight Radius(mm): 5.0
• Rated Voltage (Vdc):3.0
• Operating Voltage (Vdc):1.5~4.2
• Rated Speed (rpm):6400
• Motor weight: 9.7g
• Typical Norm. Amplitude: 15.0g min
• Eccentric weight can be made with iron, brass, or tungsten alloy to meet your difference vibe force requirements.
• Our product datasheet provides performance details of these motors.

• Motor speed, eccentric weight and current value are reference only, we are able to customize as per customer's request.  We are driven to deliver excellence quality products to our customers.

ERM Vibration Motor

• Body dia (mm):12.0 / 10.0
• Body length (mm):15.1
• Overall (mm):23.7
• Ecc. Weight Radius(mm): 5.0
• Rated Voltage (Vdc):3.0
• Operating Voltage (Vdc):1.5~4.2
• Rated Speed (rpm):6400
• Typical Rated Operating Current: 250mA
• Typical Norm. Amplitude: 14.3g min
• Our product datasheet provides performance details of these motors.
• Professional production line for Mattel,  Hasbro many years.  We are driven to deliver excellence  quality products to our customers.

24mm small Brushless DC Motor

• DC Motor Vibration, ERM 15000 RPM 3VDC
•  This is micro brushless motor, support forward and reverse rotation and PWM speed regulation, built-in drive type, JYBLDC24 brushless motor, 20khz PWM signal speed control, with speed signal feedback output.

• OD: 24mm Body Length: 18mm
• Voltage: 6~26V
• Shaft diameter: 2mm
• Shaft length: 10.6mm
•  Built-in driver, Hall sensor, Hall-effect sensor, Inbuilt controller with hall-effect sensor, Controller with hall sensor, PWM pulse, CW CCW, FG speed feedbacks.
•  Customizations and integration solution.

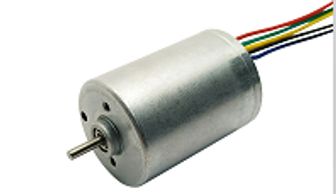

28mm Brushless DC Motor

1. This motor is BLDC control motor with high torque high speed featurers, which can be used on slow cooking machine,  Vending Machine, Oxygen Machine, Optical cleaning machine, Fluid Pump.  Customizations and integration solution.

• OD: 28mm Body Length: 38mm
• Voltage: 6~26V
•  Built-in driver, Hall sensor, Hall-effect sensor, Inbuilt controller with hall-effect sensor, Controller with hall sensor, PWM pulse, CW CCW, FG speed feedbacks

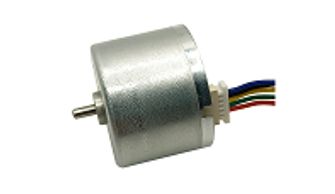

36mm Brushless DC Motor

1. This motor is BLDC control motor with high torque high speed featurers, which can be used on slow cooking machine,  Vending Machine, Oxygen Machine, Optical cleaning machine, Fluid Pump.  Customizations and integration solution.

• OD: 36mm
• Voltage: 6~26V
•  Built-in driver, Hall sensor, Hall-effect sensor, Inbuilt controller with hall-effect sensor, Controller with hall sensor, PWM pulse, CW CCW, FG speed feedbacks
